Oil Composite Hose

Oil Composite Hose is a high-performance flexible hose designed for the safe and efficient transfer of petroleum products and other hydrocarbons. Engineered for industrial and fuel handling applications, it combines structural strength with chemical resistance for reliable long-term operation.

ID 32911 Images

Back to Line Request Quote

Description

This hose features an internal PP (polypropylene) liner resistant to oil, chemicals, and corrosion, ensuring smooth flow and minimal contamination. The hose is reinforced with carbon steel wire braids and spirals for excellent pressure resistance, mechanical strength, and flexibility. Its robust design makes it ideal for fueling systems, tanker loading, and industrial hydrocarbon transfer.

Specification

Features

• Inner PP liner resistant to oil, chemicals, and corrosion
• Carbon steel wire reinforcement for high-pressure resistance and durability
• Flexible design for easy handling and installation
• Smooth bore minimizes flow resistance and contamination
• Suitable for industrial, petroleum, and fuel transfer applications

Technical

Stretch rate: ≤10%
Maximum working pressure: 16 bar
Test pressure: 15 times maximum working pressure
Burst pressure: ≥4 times maximum working pressure
Negative pressure: ≤0.9 bar
Twisting degree: ≤10%
Resistivity: ≤2 ohms/m (for diameters <100 mm)
Operating temperature: -30°C to 80°C

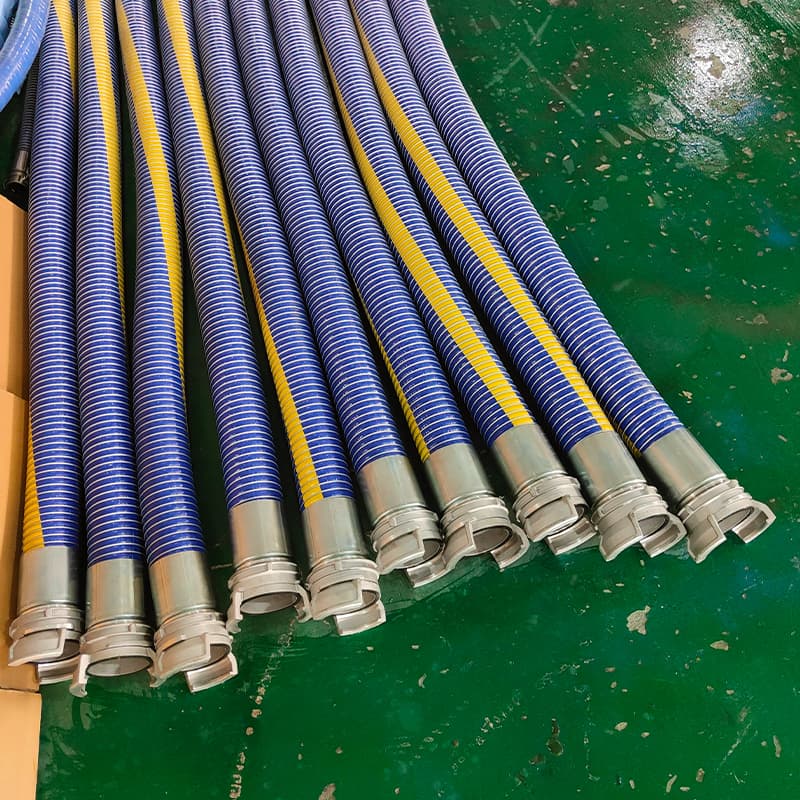

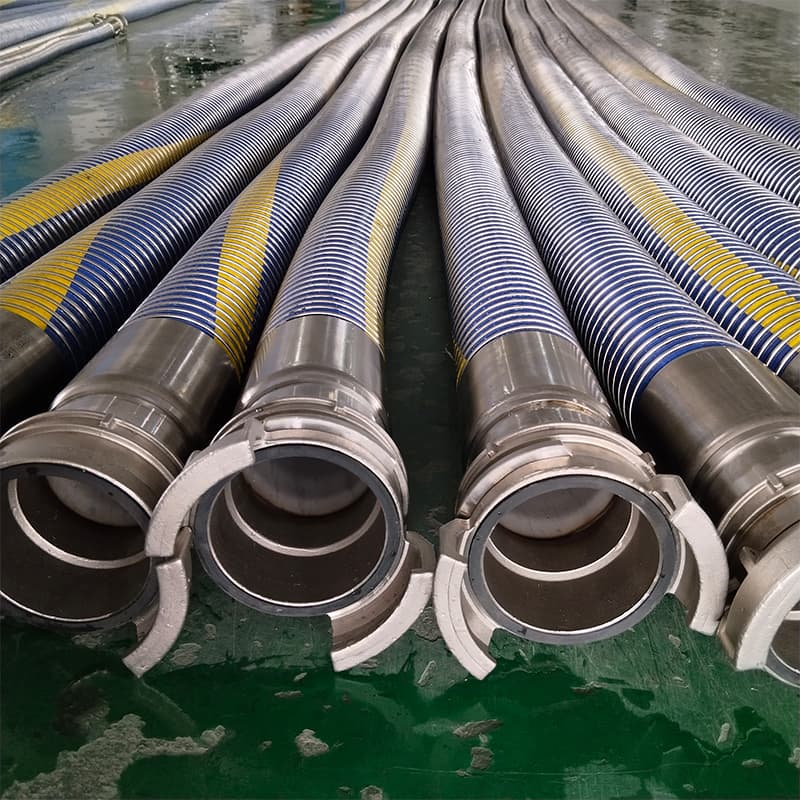

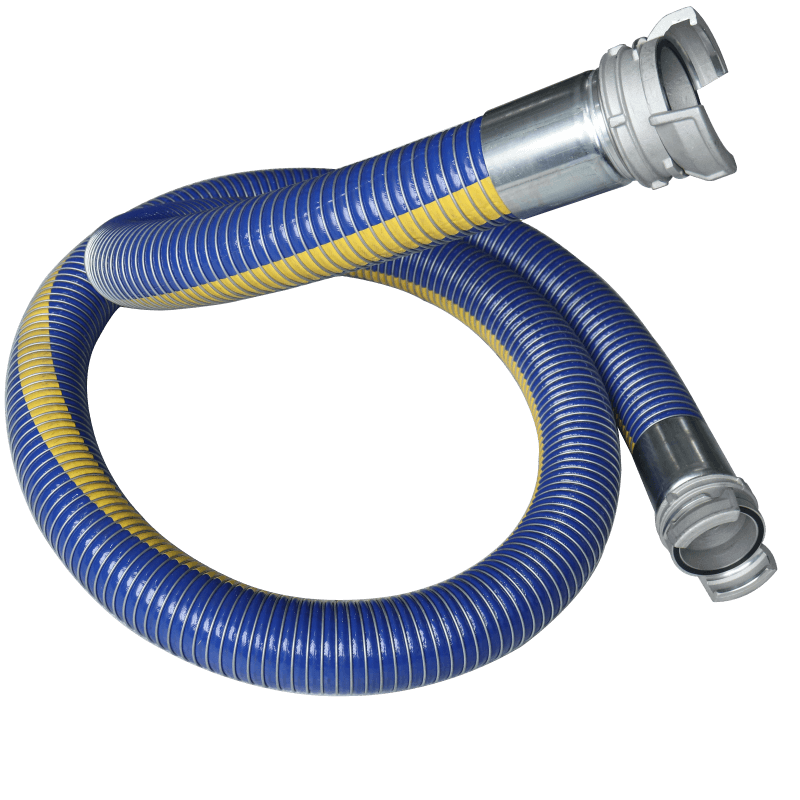

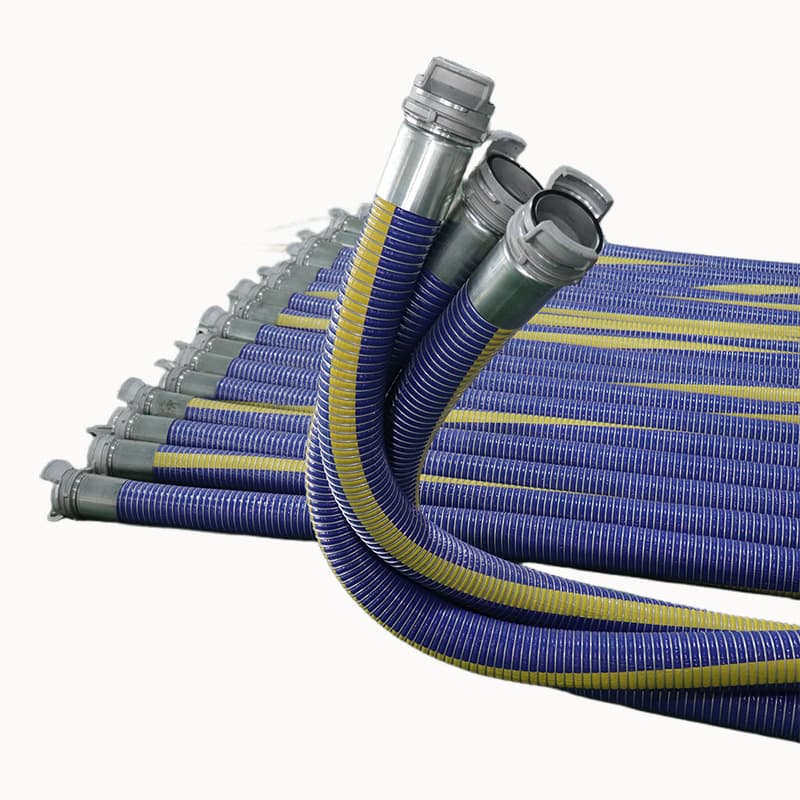

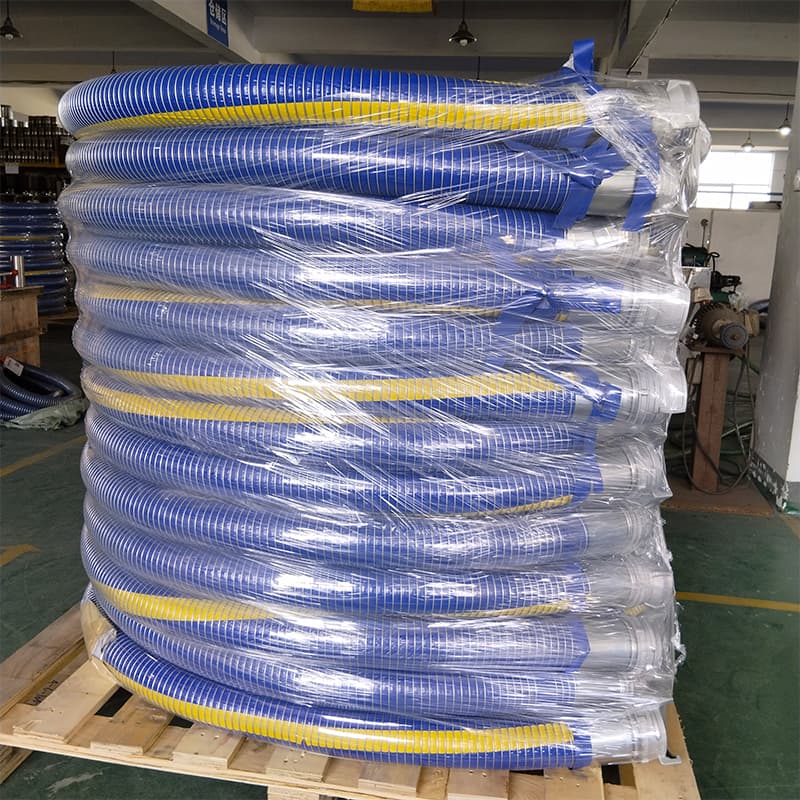

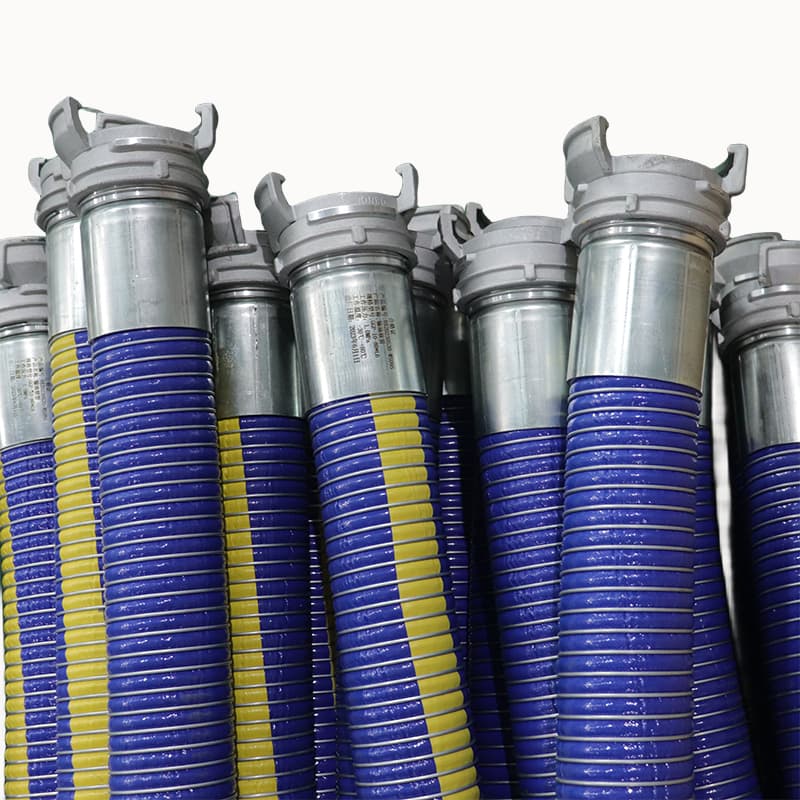

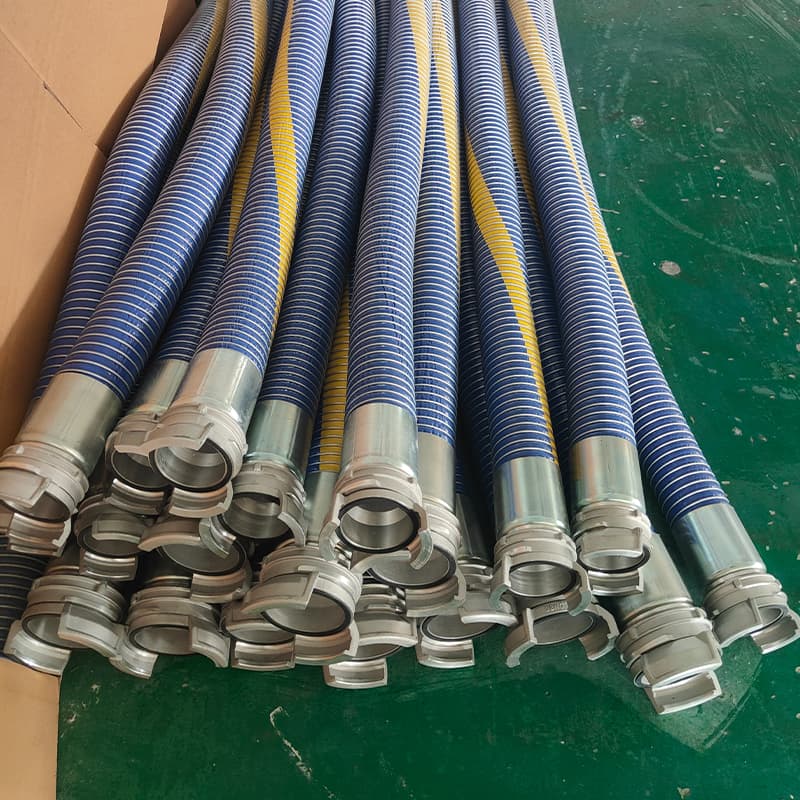

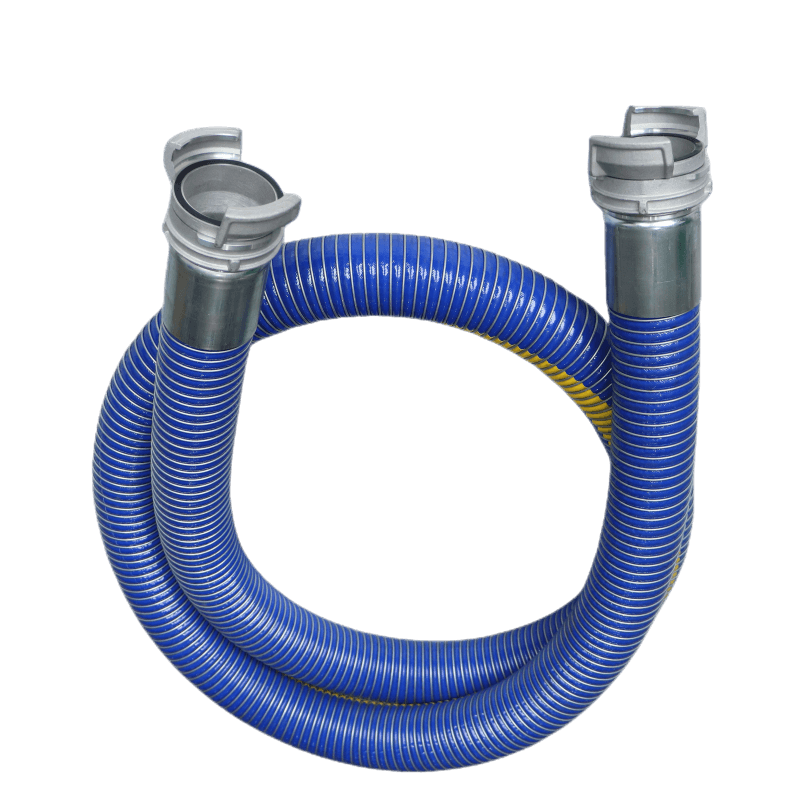

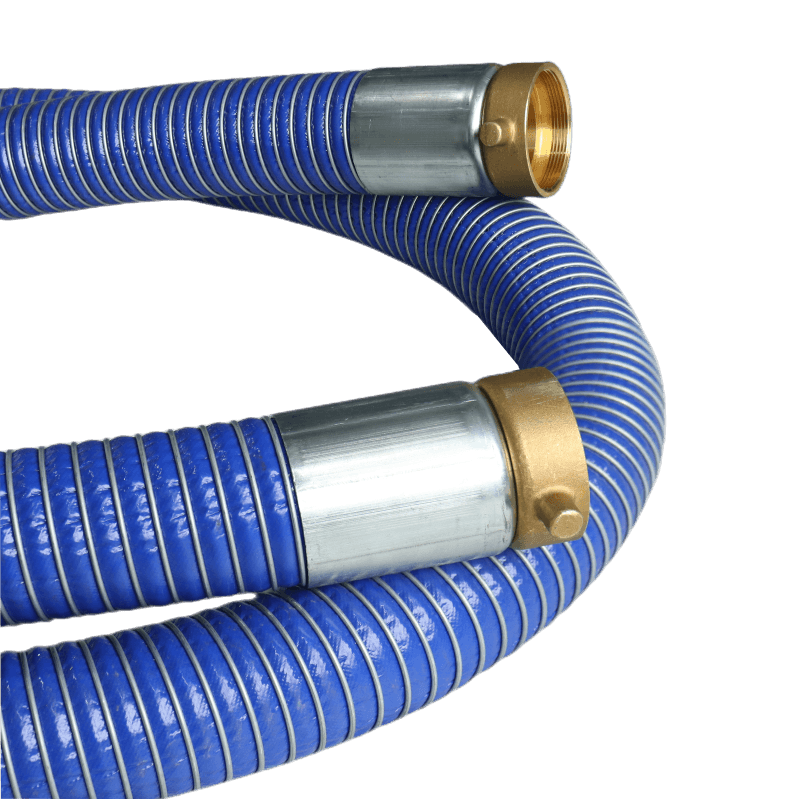

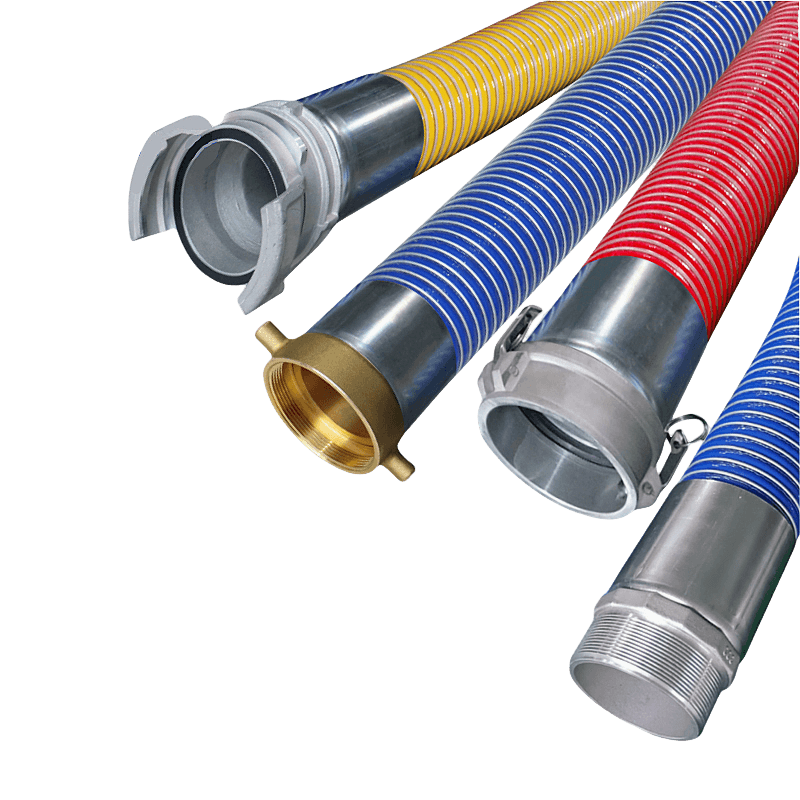

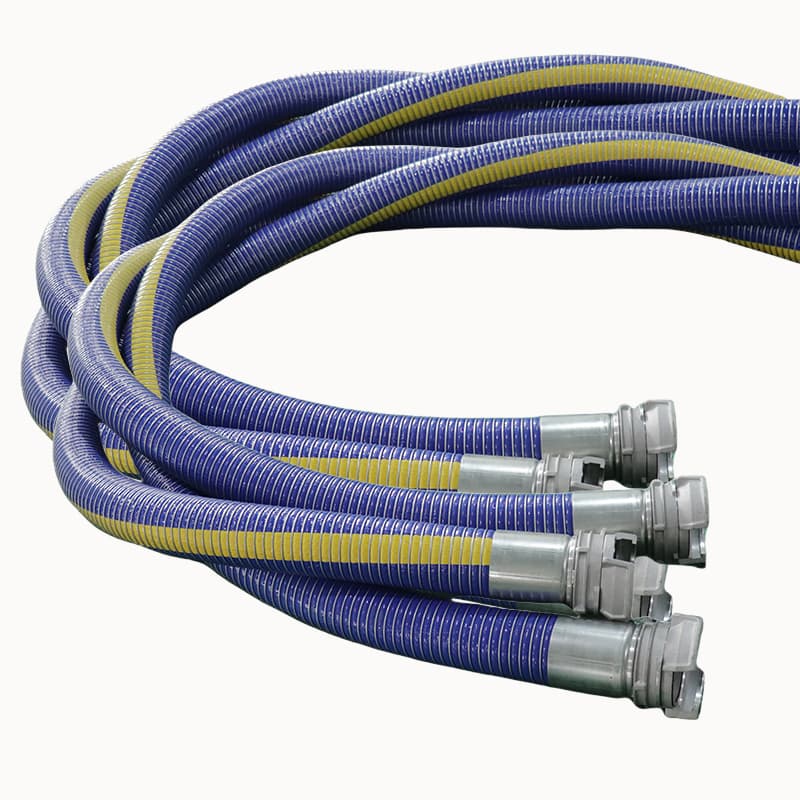

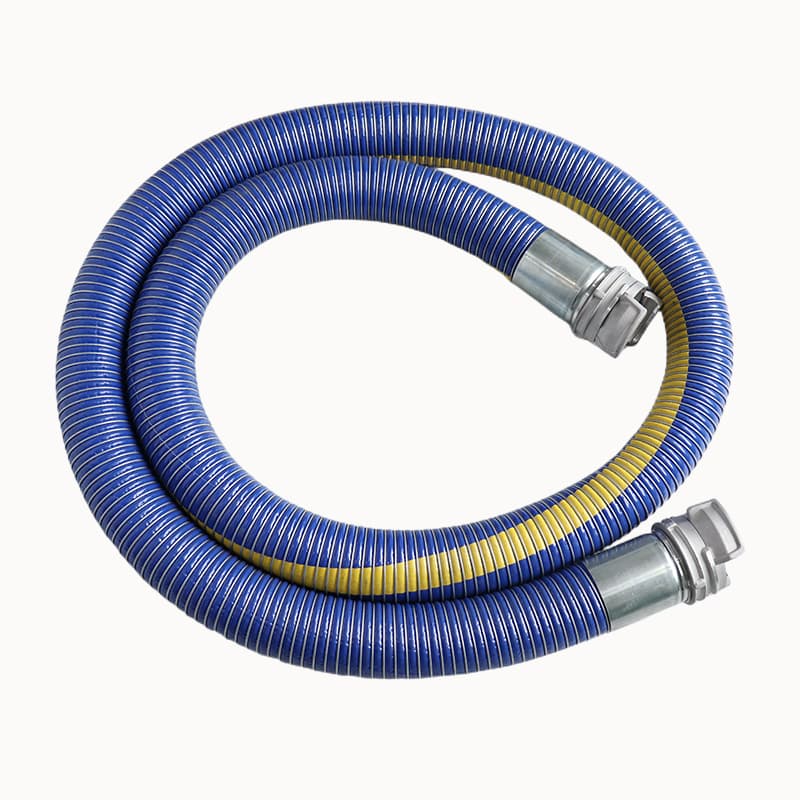

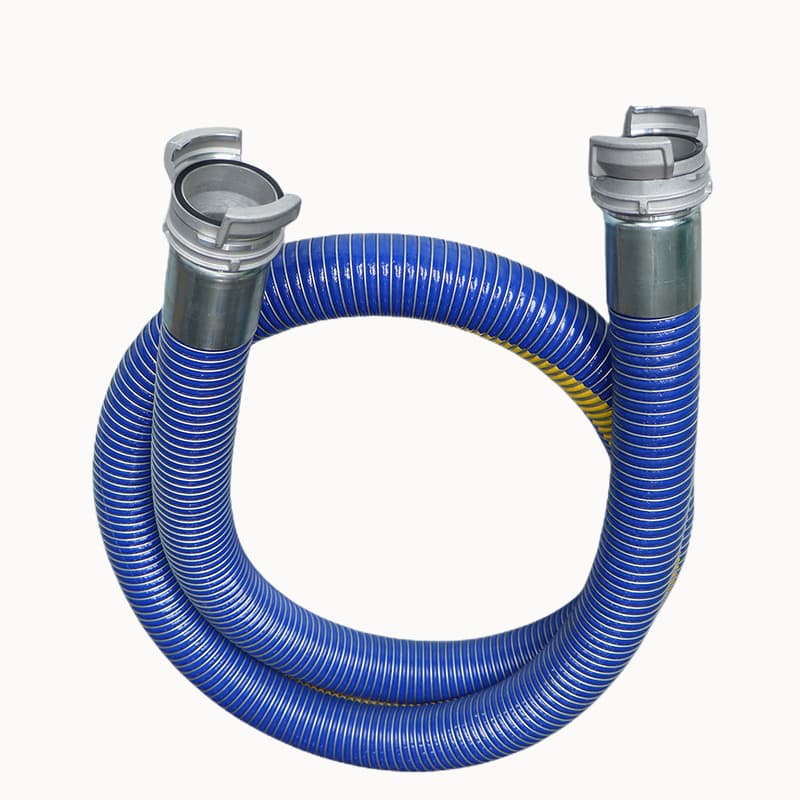

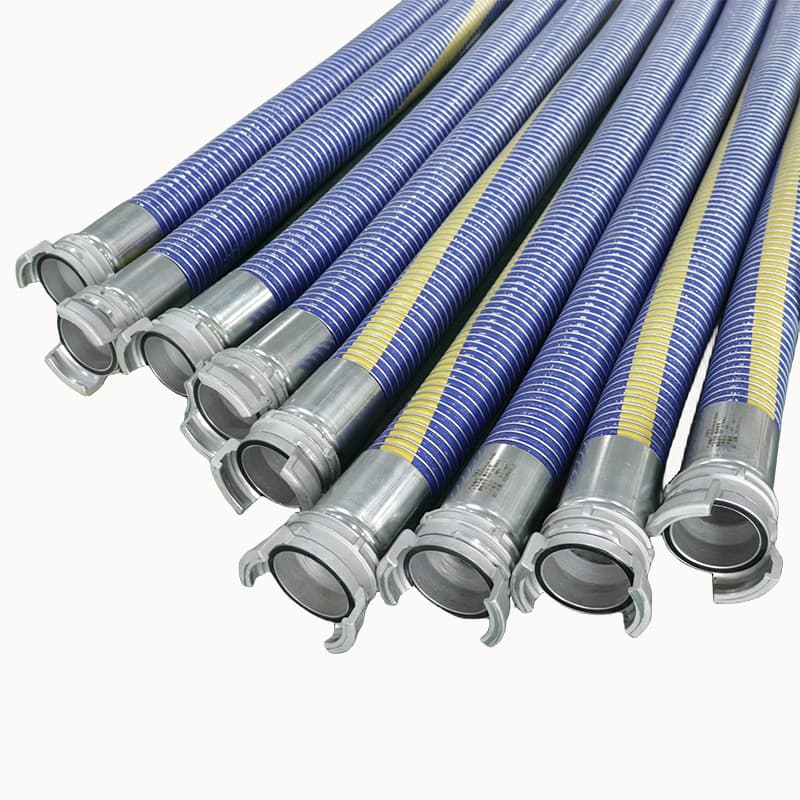

Image Gallery
