Metal Compensator

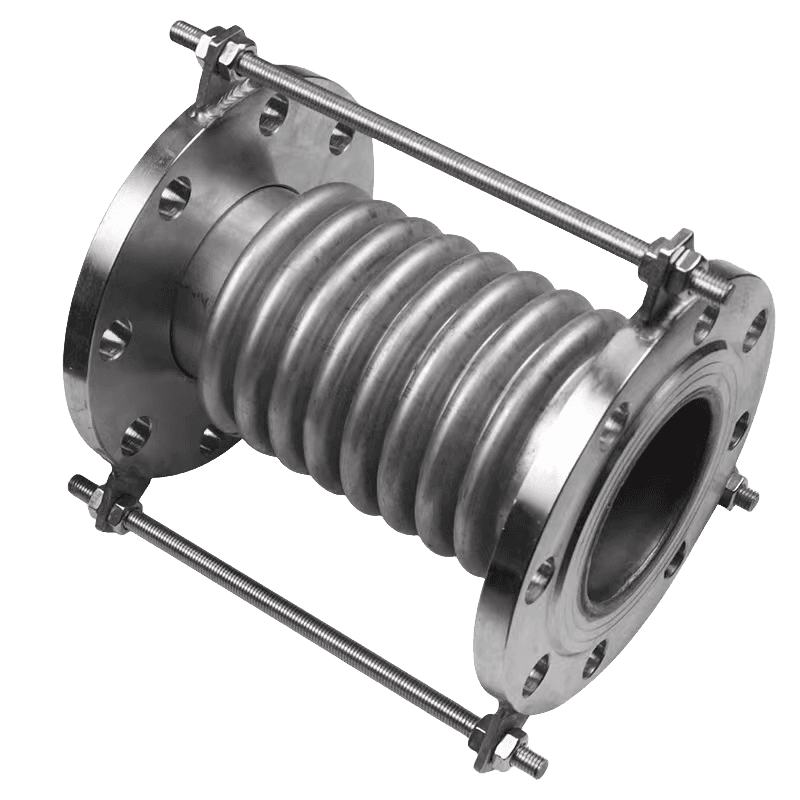

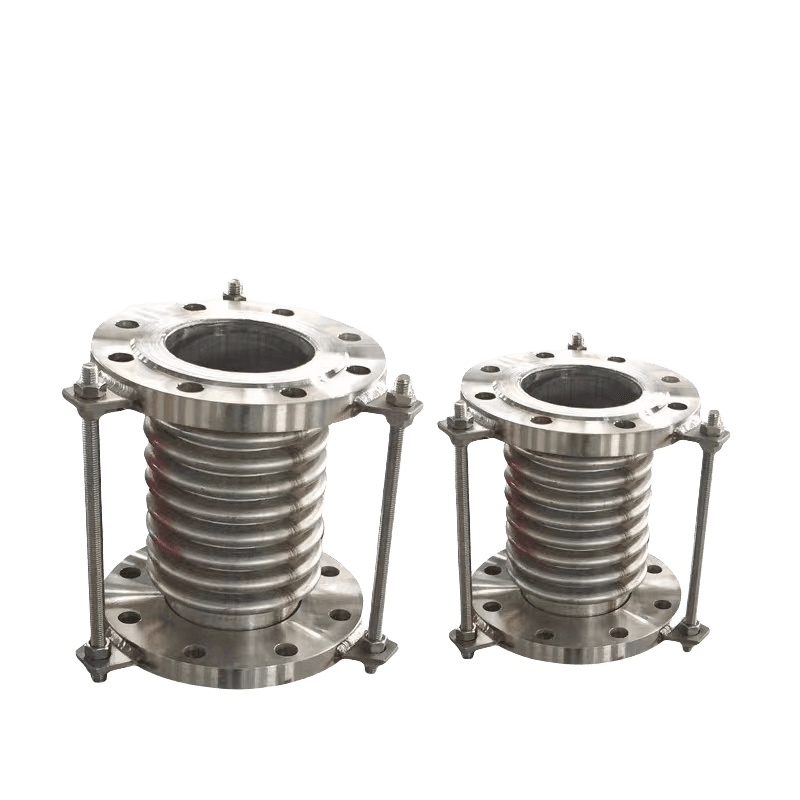

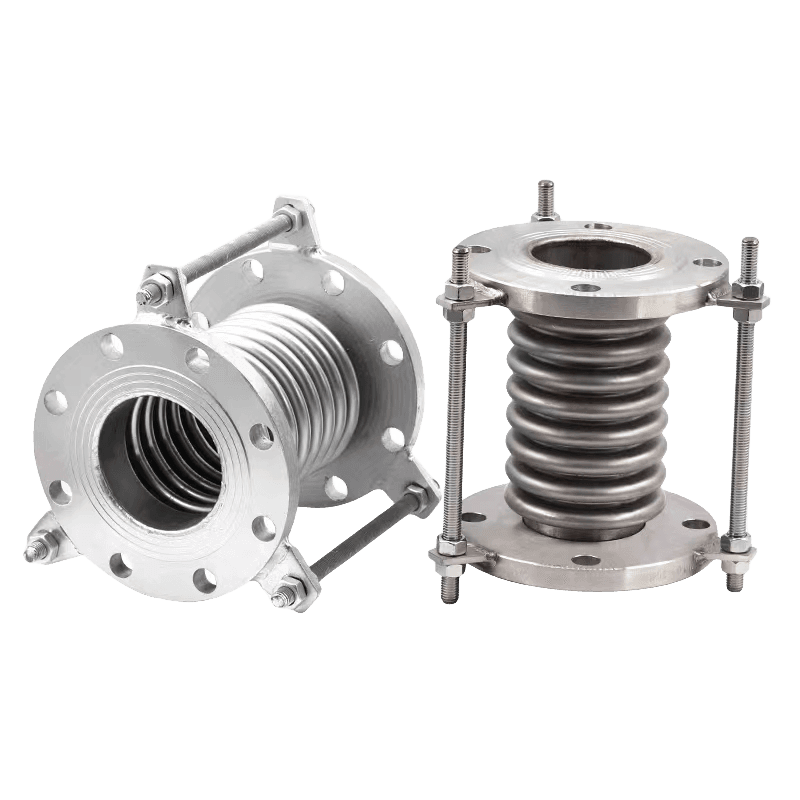

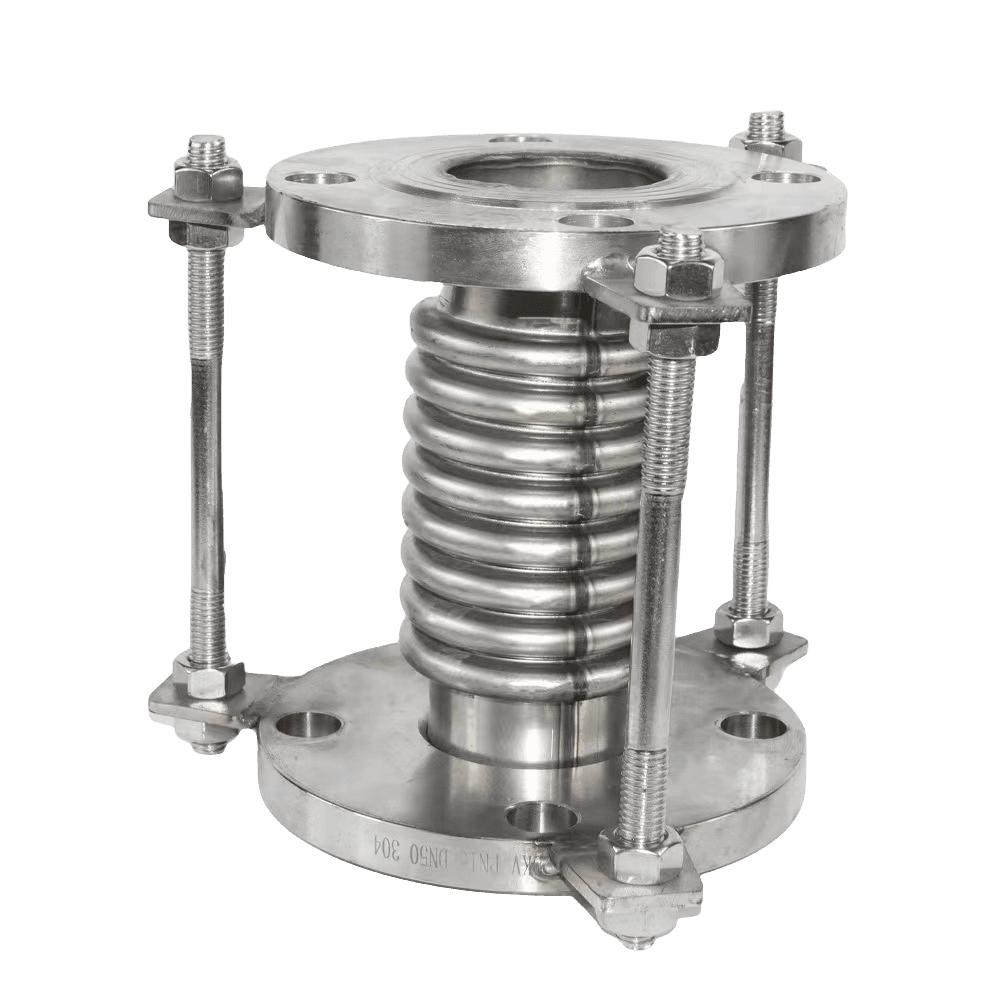

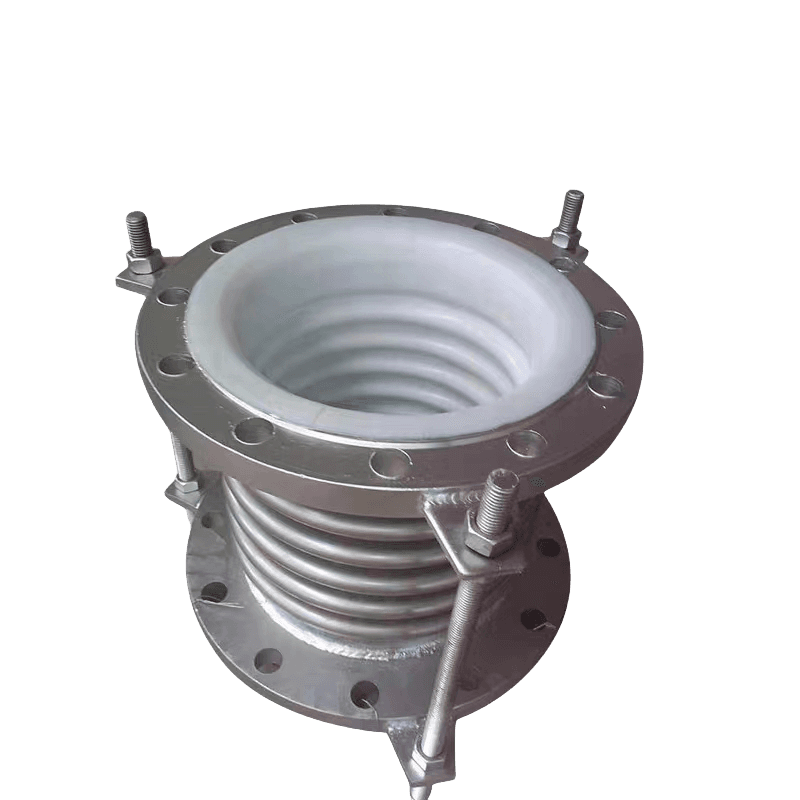

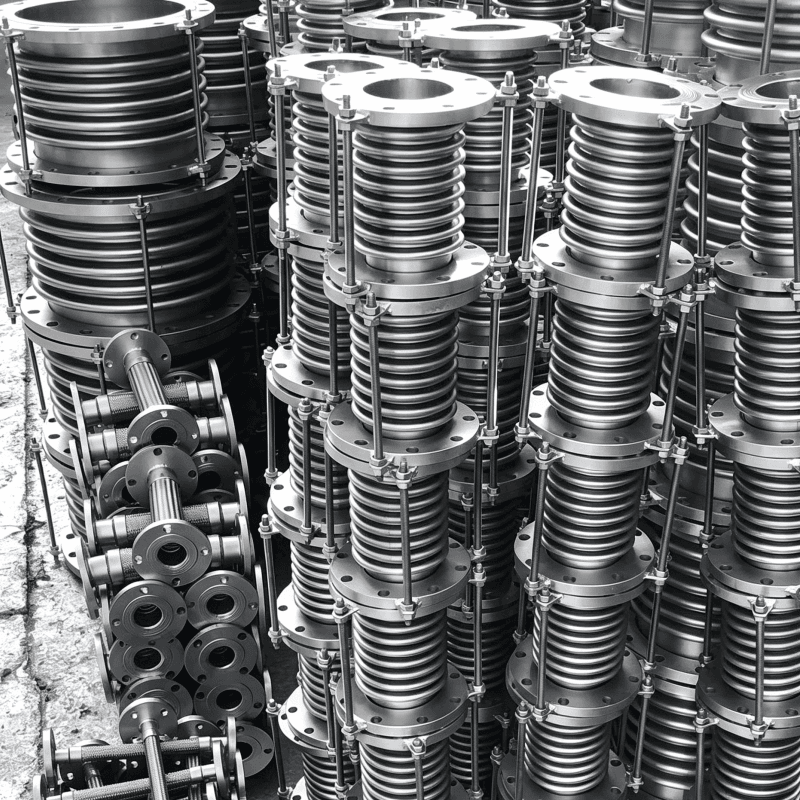

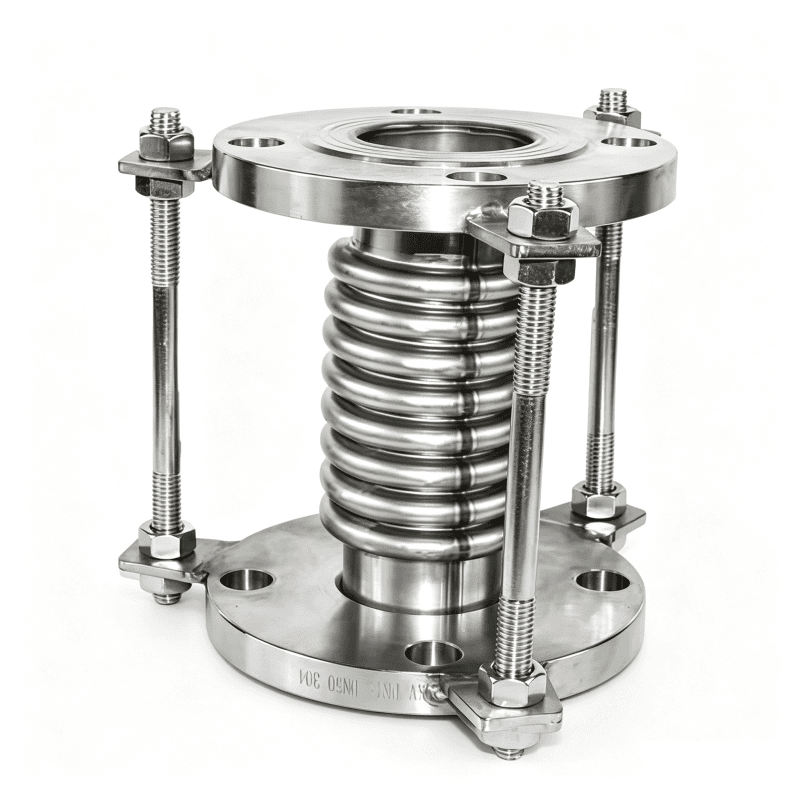

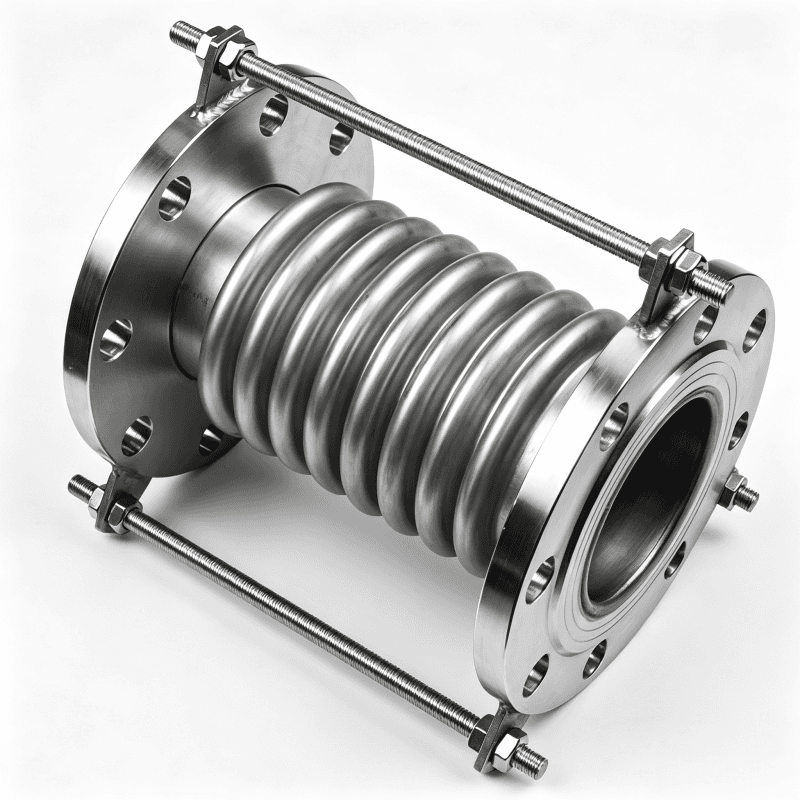

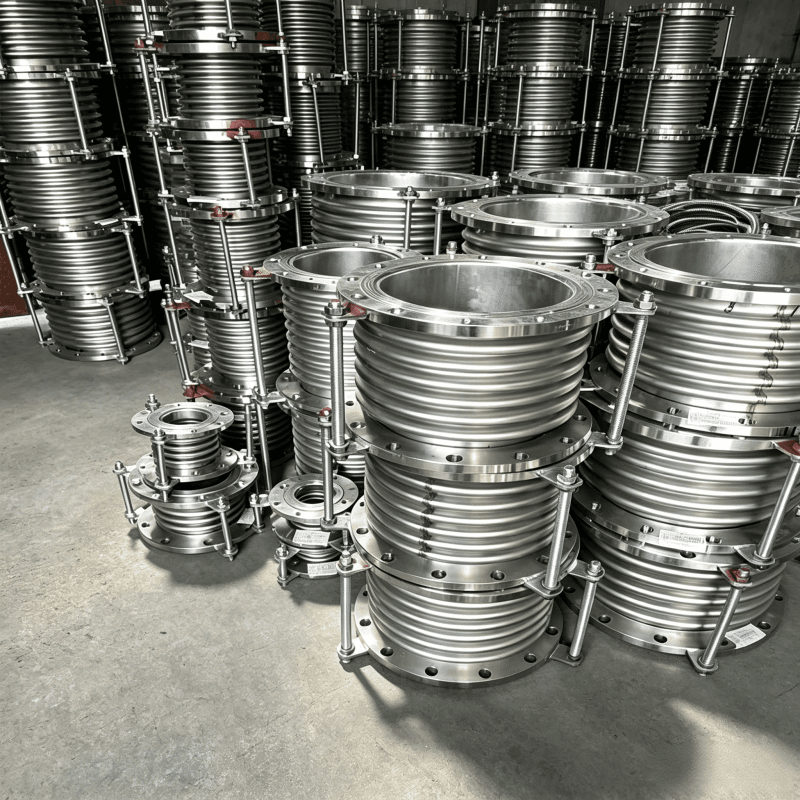

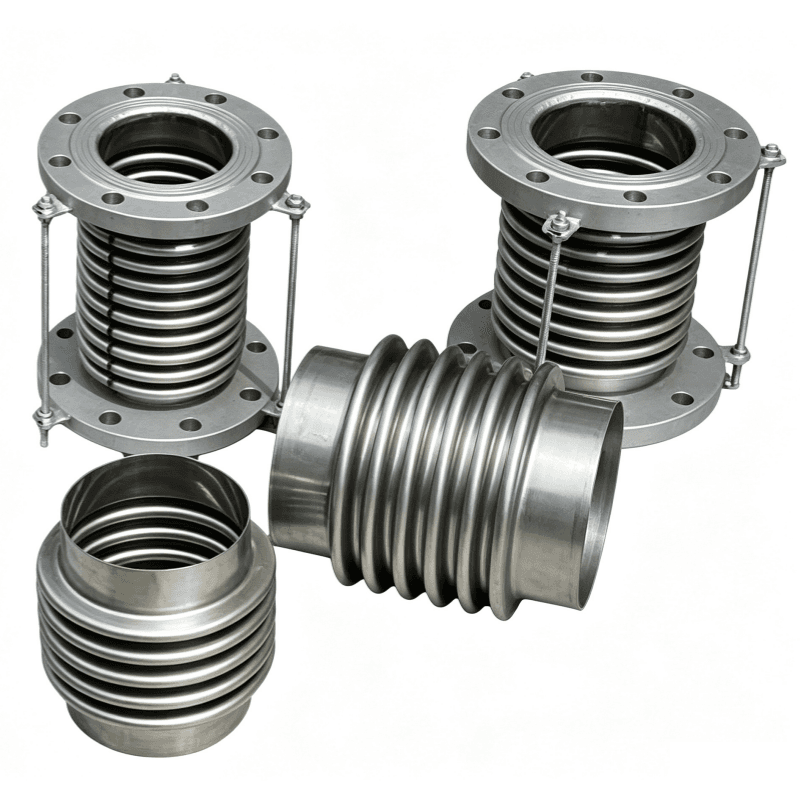

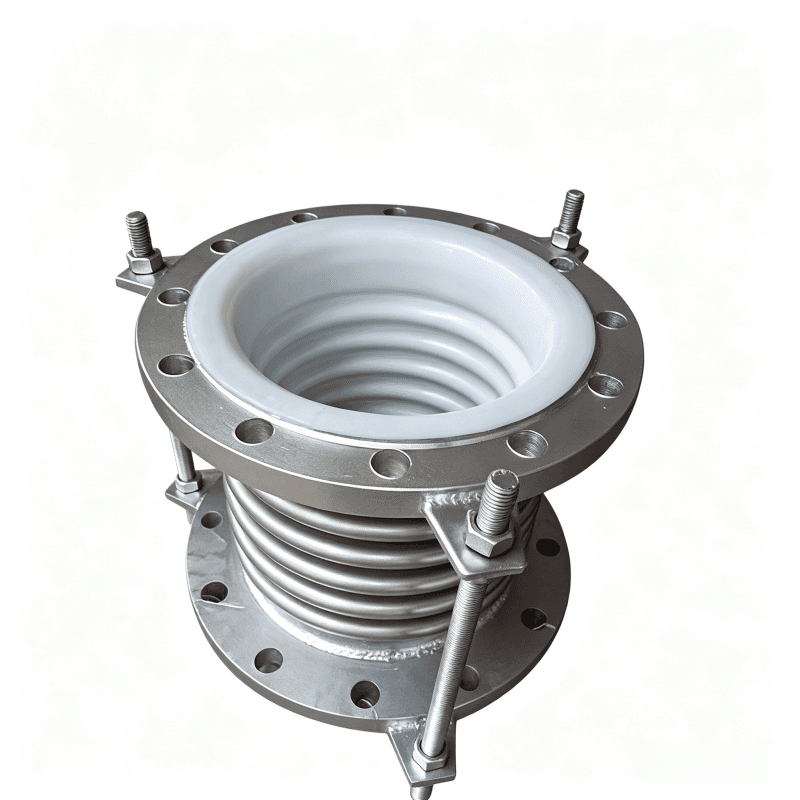

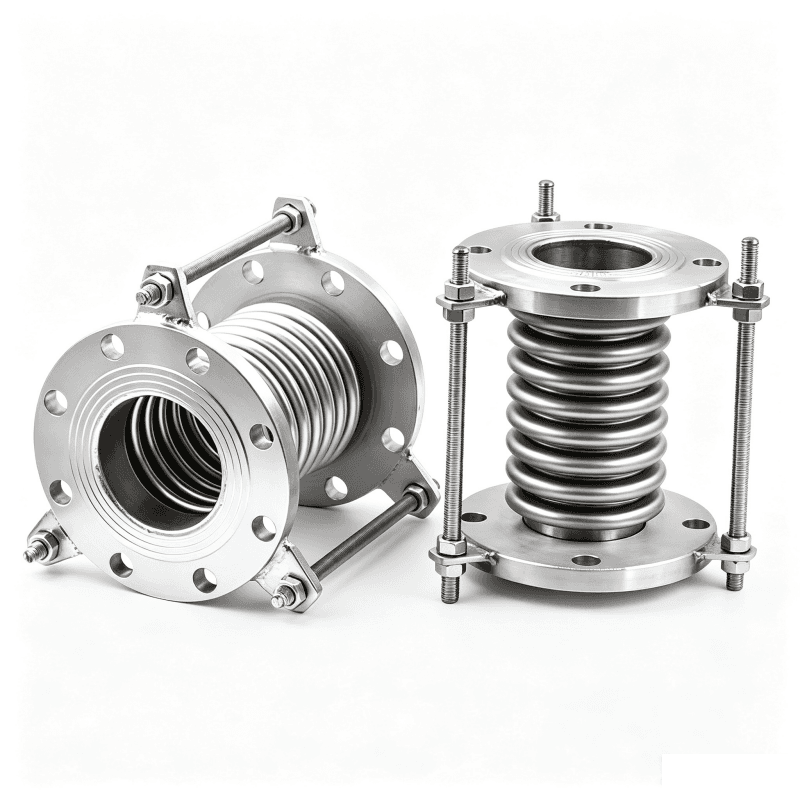

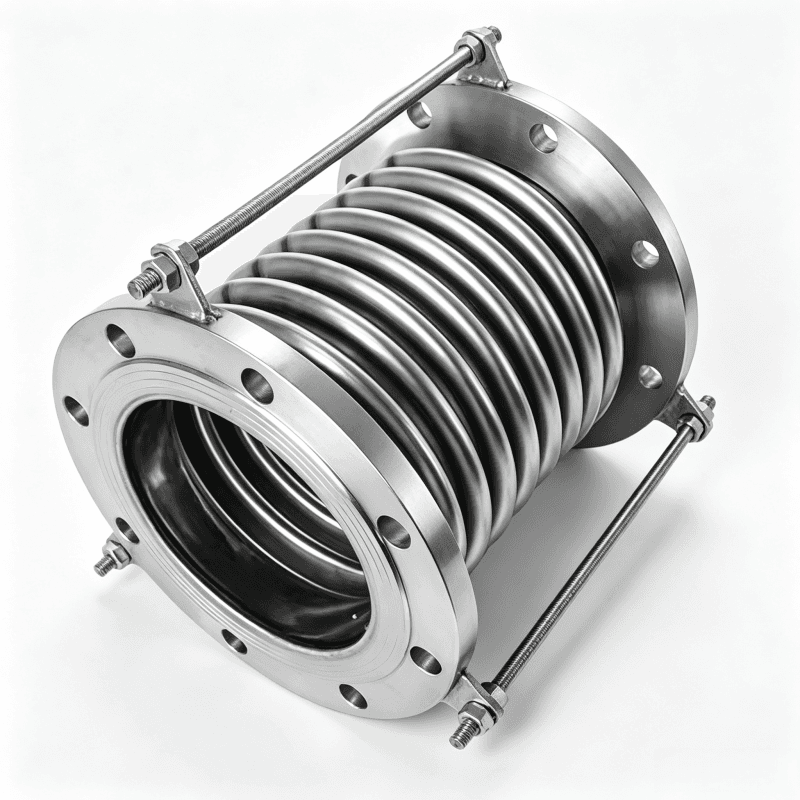

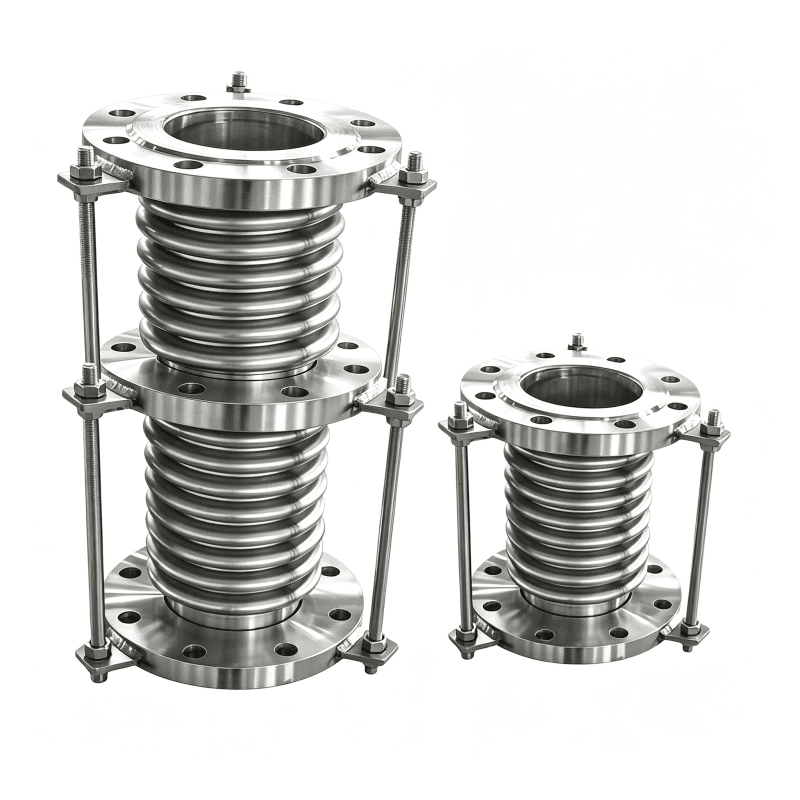

Metal Expansion Joint, also known as a Metal Compensator, is designed to absorb thermal expansion, contraction, vibration, and mechanical displacement in piping systems. It is widely used in industrial, chemical, and power generation applications to protect pipelines and equipment while ensuring smooth flow.

ID 3476 Images

Back to Line Request Quote

Description

This expansion joint is made of high-quality stainless steel, engineered with corrugated bellows for maximum flexibility and durability. The metal bellows accommodate axial, lateral, and angular movements, reducing stress on connected equipment and pipelines. Suitable for high-temperature, high-pressure, and corrosive media, the metal compensator ensures reliability and longevity in demanding industrial systems.

Specification

Features

• Corrugated metal bellows provide flexibility to absorb thermal expansion and contraction
• High-strength stainless steel construction for long-term durability
• Reduces vibration, noise, and mechanical stress on pipelines
• Resistant to high temperature and high-pressure media
• Suitable for industrial, chemical, power, and HVAC systems

Technical

• Material: Stainless steel 304 / 316
• Temperature Range: -40°C to 200°C
• Pressure Rating: Up to 16 bar (depending on model and size)
• Movement Capabilities: Axial, lateral, angular
• Connection Types: Flanged, weld end, or threaded
• Sizes: DN25 – DN200 (custom sizes available)
• Operating Environment: Indoor/outdoor, suitable for high-temperature, high-pressure, and corrosive media

Image Gallery
