PTFE-Lined Metal Braided Corrugated Hose

PTFE-lined Metal Braided Corrugated Hose is designed for industrial, chemical, and high-temperature fluid transfer applications. The corrugated PTFE inner tube offers flexibility and corrosion resistance, while the stainless steel braid reinforces the hose for high mechanical strength and pressure resistance.

ID 3445 Images

Back to Line Request Quote

Description

This hose features a corrugated PTFE inner tube, which is highly flexible and chemically resistant, making it suitable for aggressive fluids and complex piping layouts. The outer stainless steel braid enhances structural strength, prevents kinking, and allows safe operation under high pressure. The corrugated design also absorbs vibrations and thermal expansion, ensuring reliable performance in demanding industrial environments.

Specification

Features

• Corrugated PTFE inner tube provides excellent flexibility and corrosion resistance
• Stainless steel braided reinforcement enhances mechanical strength and pressure capacity
• Resistant to kinking, vibration, and mechanical stress
• Lightweight and easy to handle compared to full metal hoses
• Ideal for chemical, industrial, and high-purity fluid transfer

Technical

• Inner Liner Material: Corrugated PTFE (Polytetrafluoroethylene)
• Reinforcement: Stainless steel braid over PTFE corrugated tube
• Temperature Range: -40°C to 200°C
• Working Pressure: Up to 16 bar (depending on size)
• Hose Diameter Range: 13mm – 200mm
• Bend Radius: Approx. 1.5 × hose diameter
• Operating Environment: Indoor/outdoor, resistant to aggressive chemicals and high temperatures.

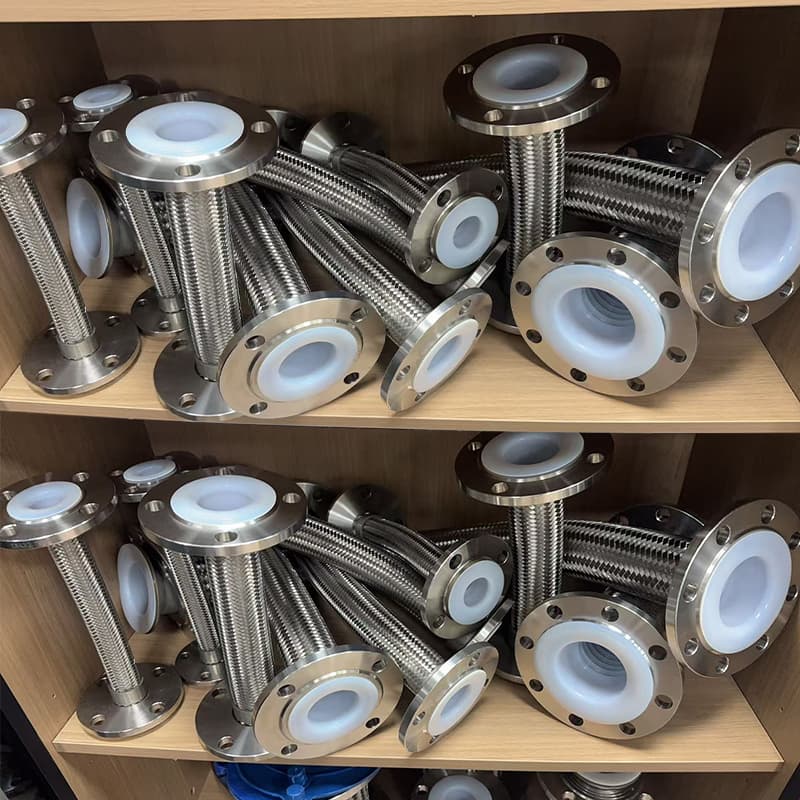

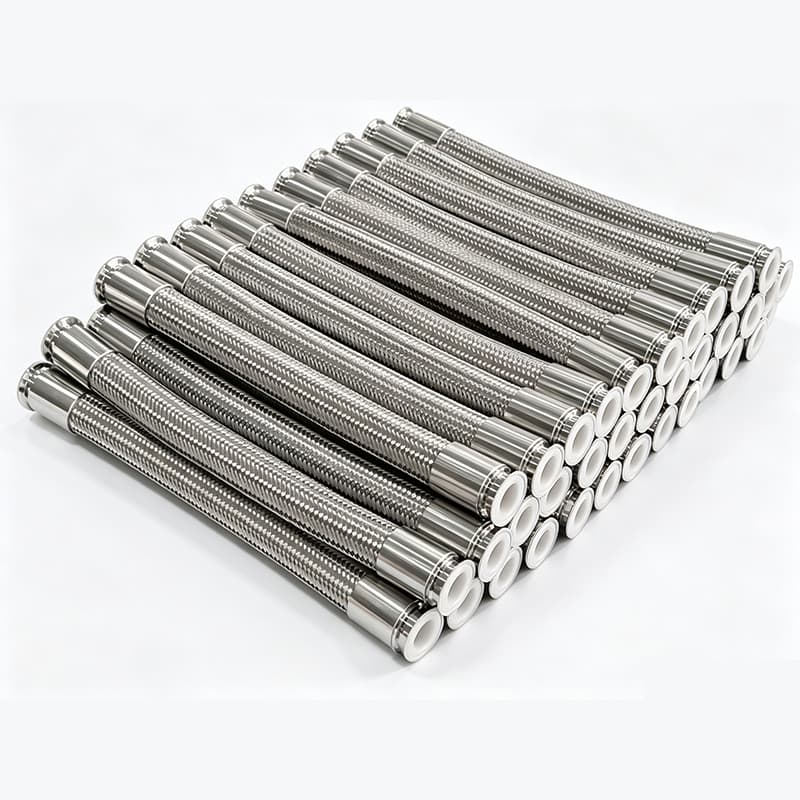

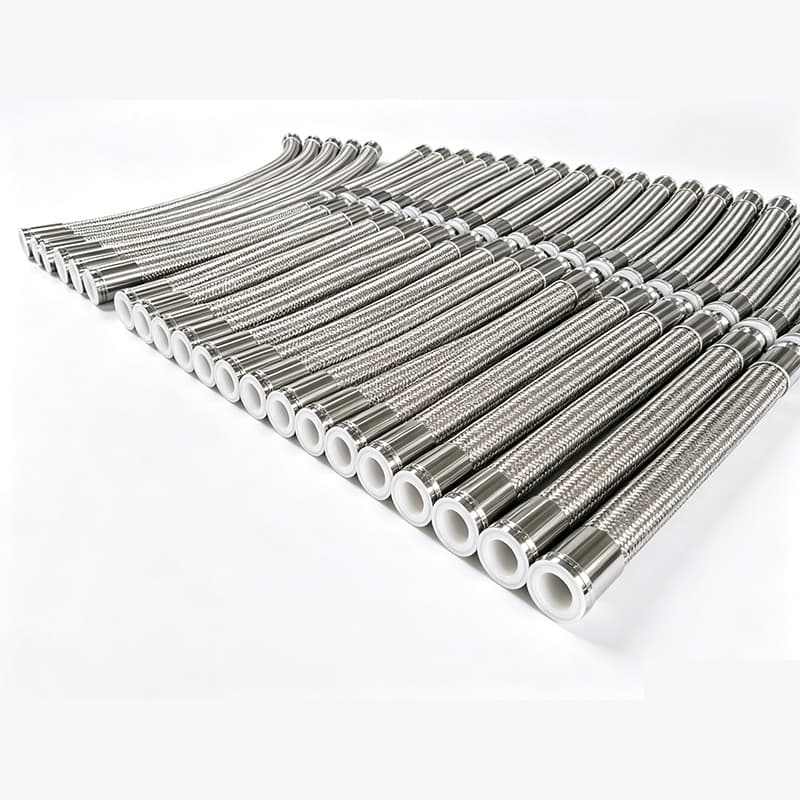

Image Gallery

PTFE-Lined Metal Braided Corrugated Hose image 1

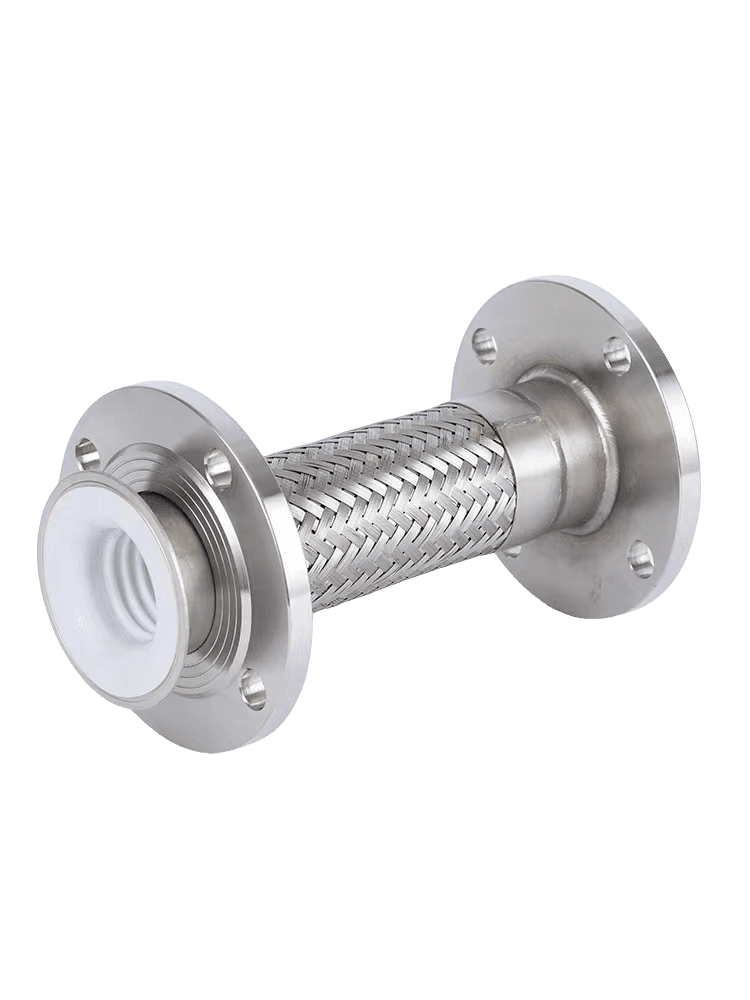

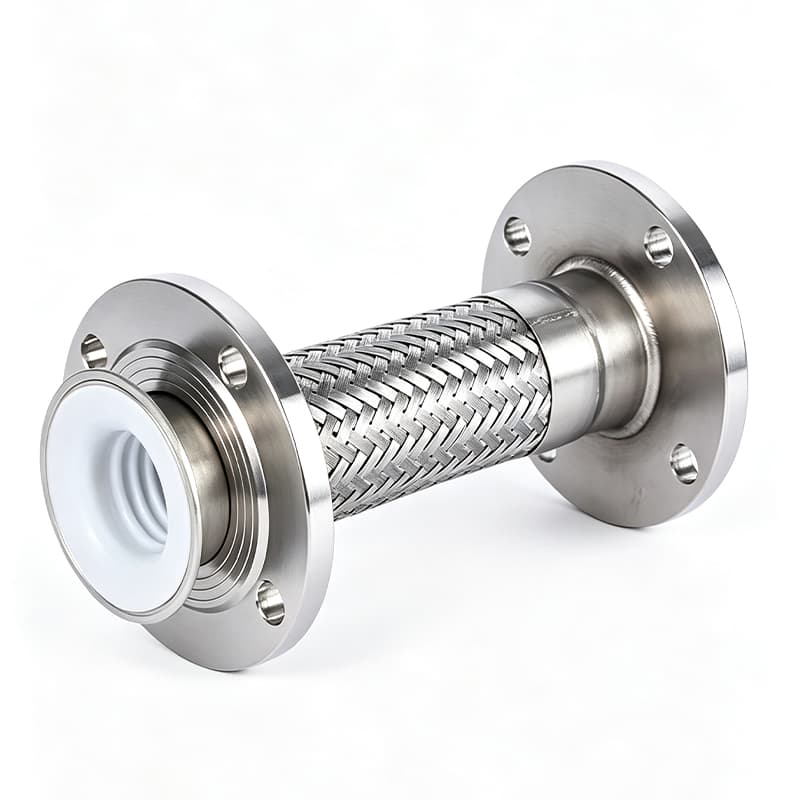

PTFE-Lined Metal Braided Corrugated Hose image 2

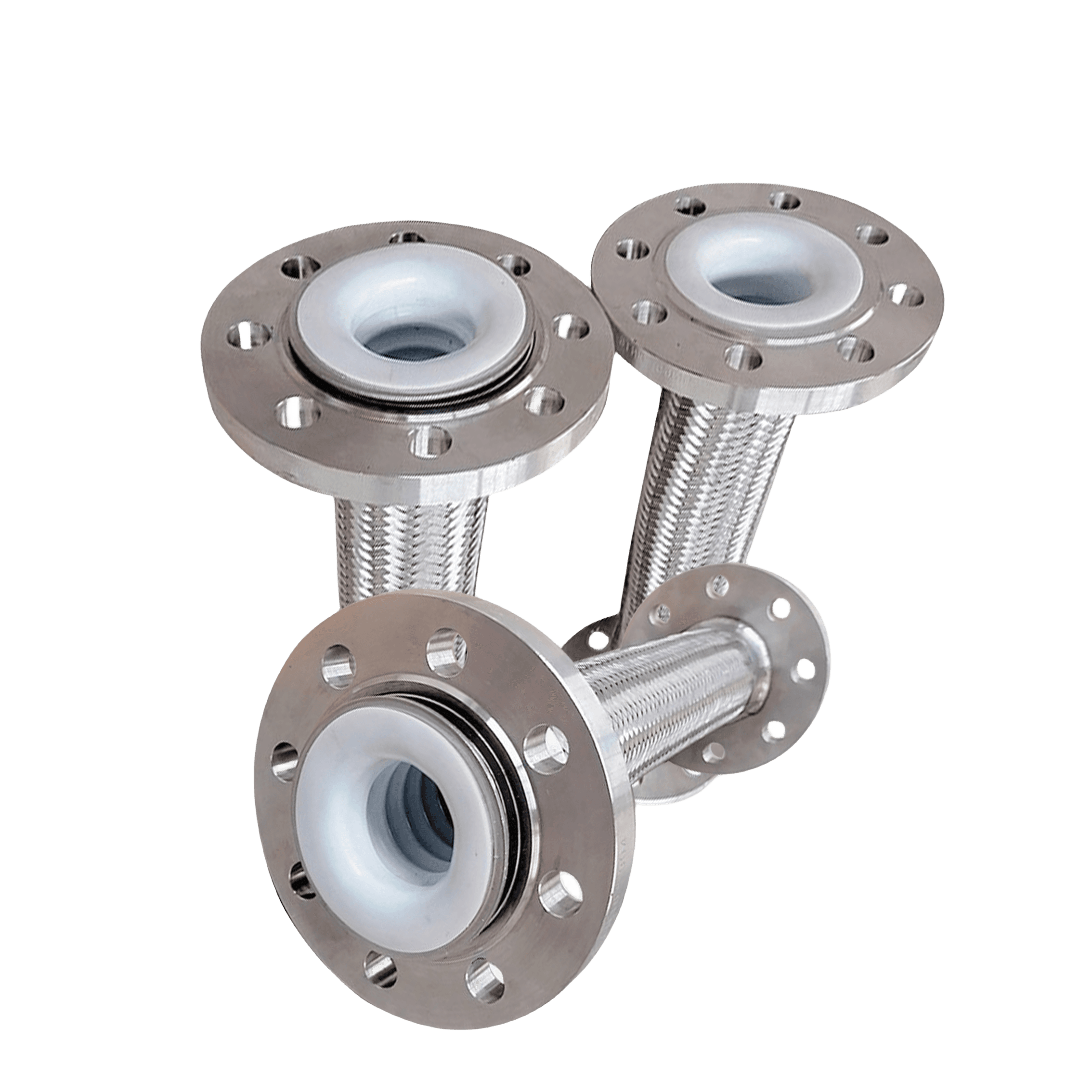

PTFE-Lined Metal Braided Corrugated Hose image 3

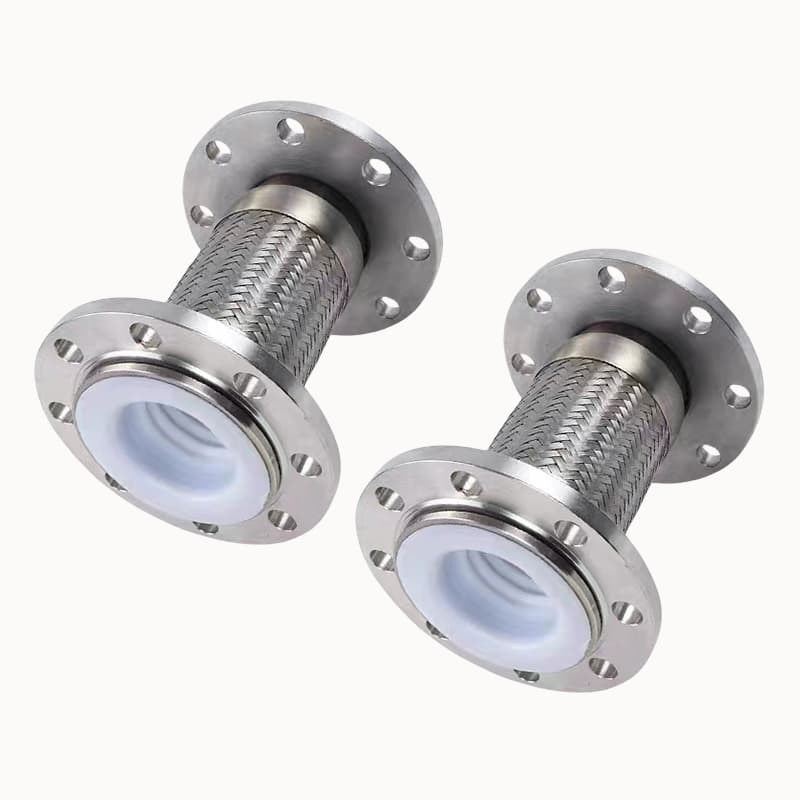

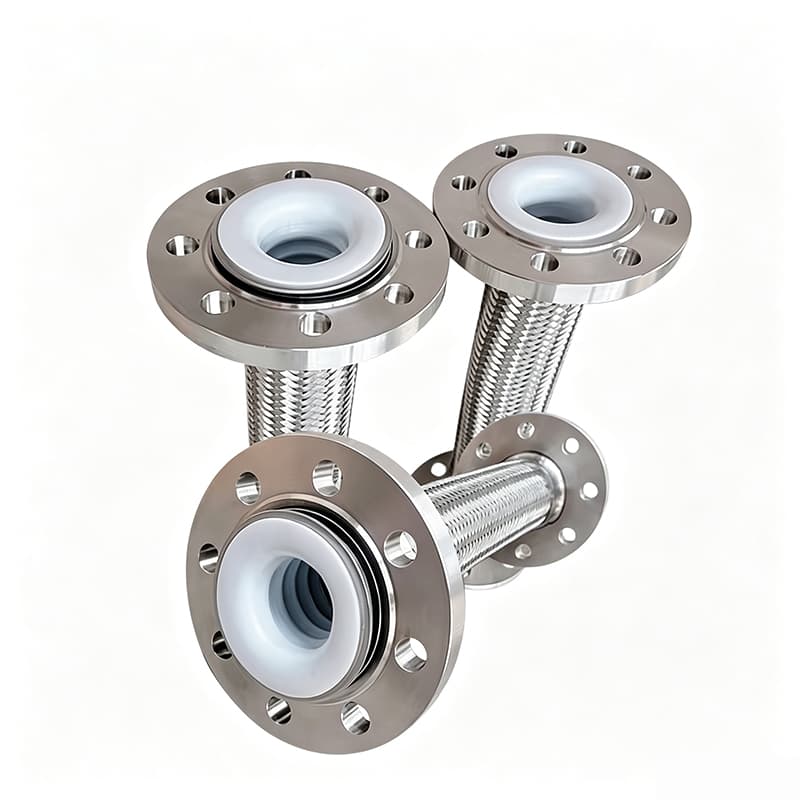

PTFE-Lined Metal Braided Corrugated Hose image 4
